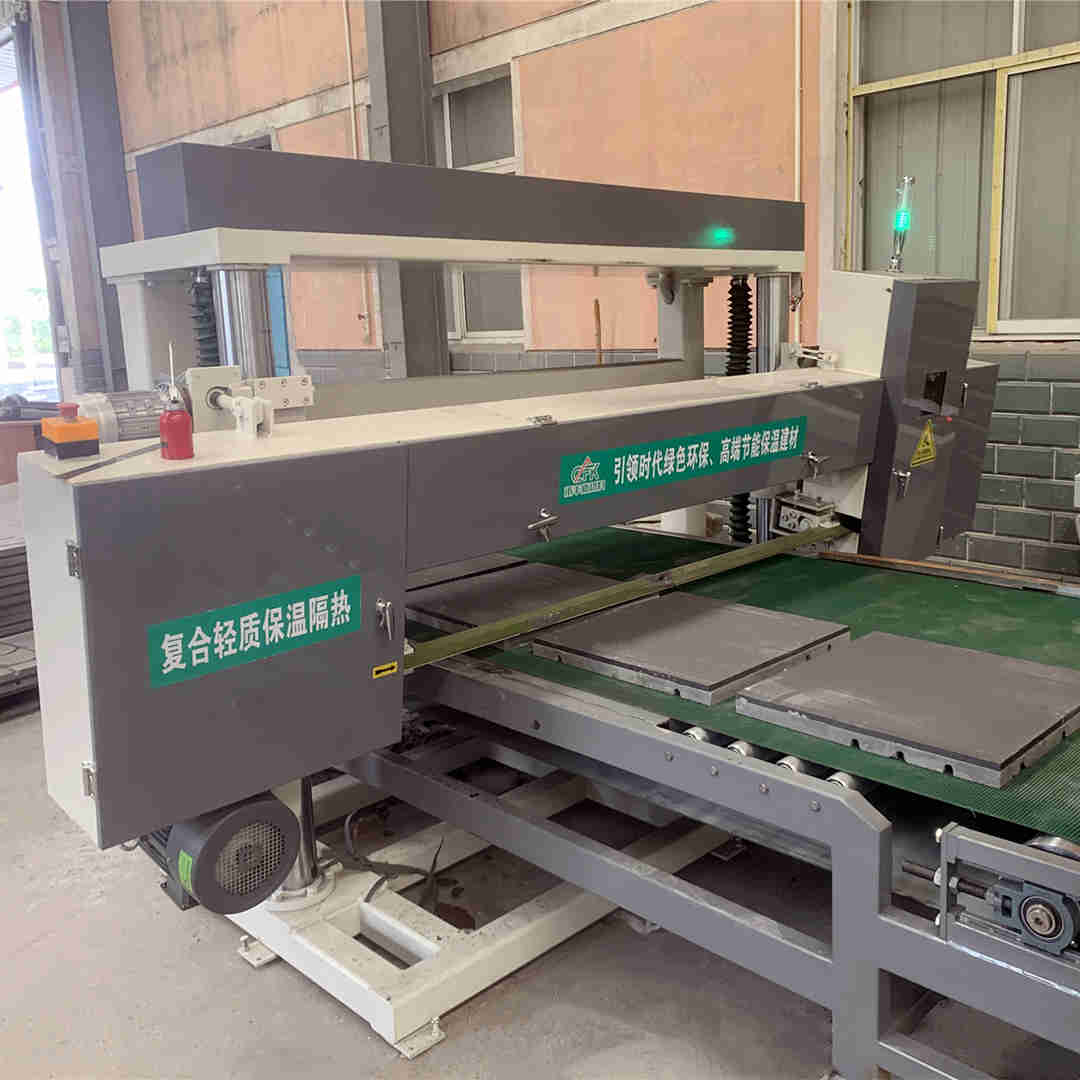

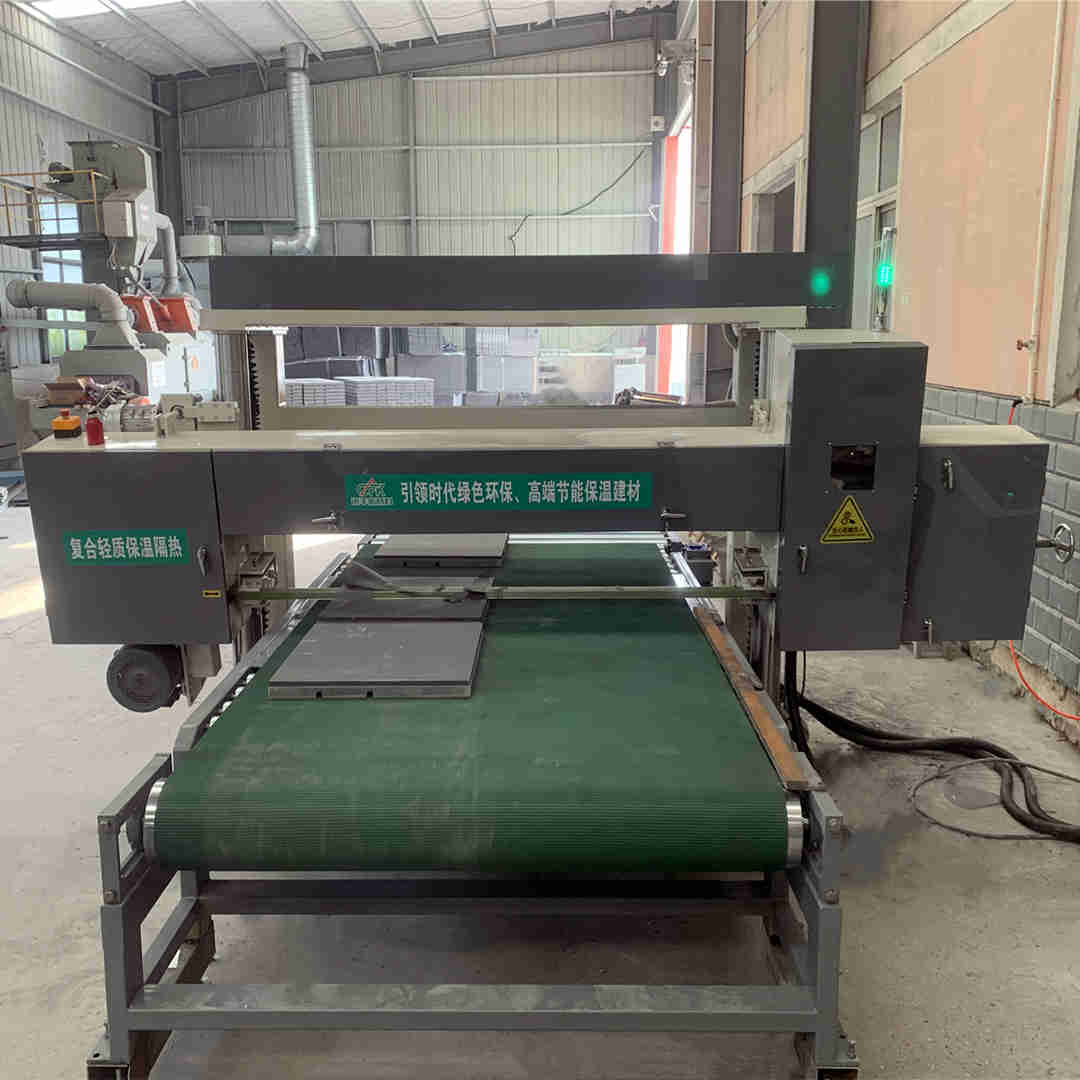

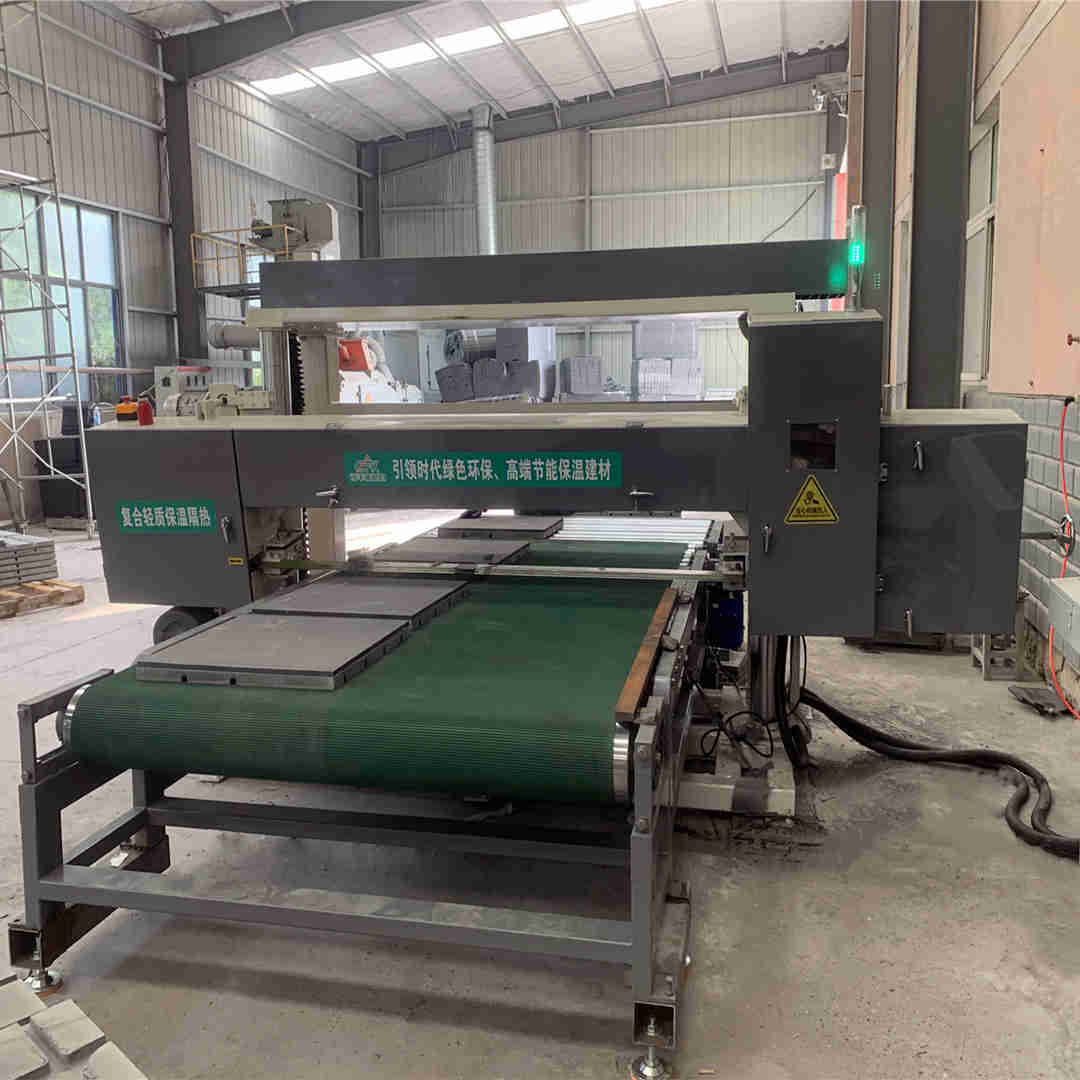

BRJX-G sponge high precision suction flat cutting machine
The machine mainly cutting the block foam into slices. It' s adopt fully automatic digital control, setting the number by control box as need cutting thickness and foam density. The workable adopt stainless steel plate runs and with vacuum, it can adding to pressure roller, and in order to prevent cutting foam removing, easy to operate, cutting precision.
技術(shù)參數(shù)：
|
型號 Model |
BRJX-1250 |
BRJX-1650 |
BRJX-2150 |
|
切割海綿尺寸 cutting foam size |
L1500*W1250*H500mm |
L2000*W1650*H800mm |
L3000*W2150*H800mm |
|
切割海綿厚度 cutting foam thickness |
1-60mm |
1-60mm |
1-60mm |
|
行走速度 treading speed |
0-30m/min |
0-30m/min |
0-30m/min |
|
總功率 total power |
9.5kw |
9.5kw |
12kw |
|
機器外形尺寸 machine external size |
L2200*W2000*H2000mm |
L2800*W2200*H2500mm |
L3800*W2200*H2500mm |
